Universal Auto Electric Air Conditioning Compressor 12V 24V For Heavy Duty Truck Bus Van RV Motorhome Parking A/C Conditioner ,Compact Design

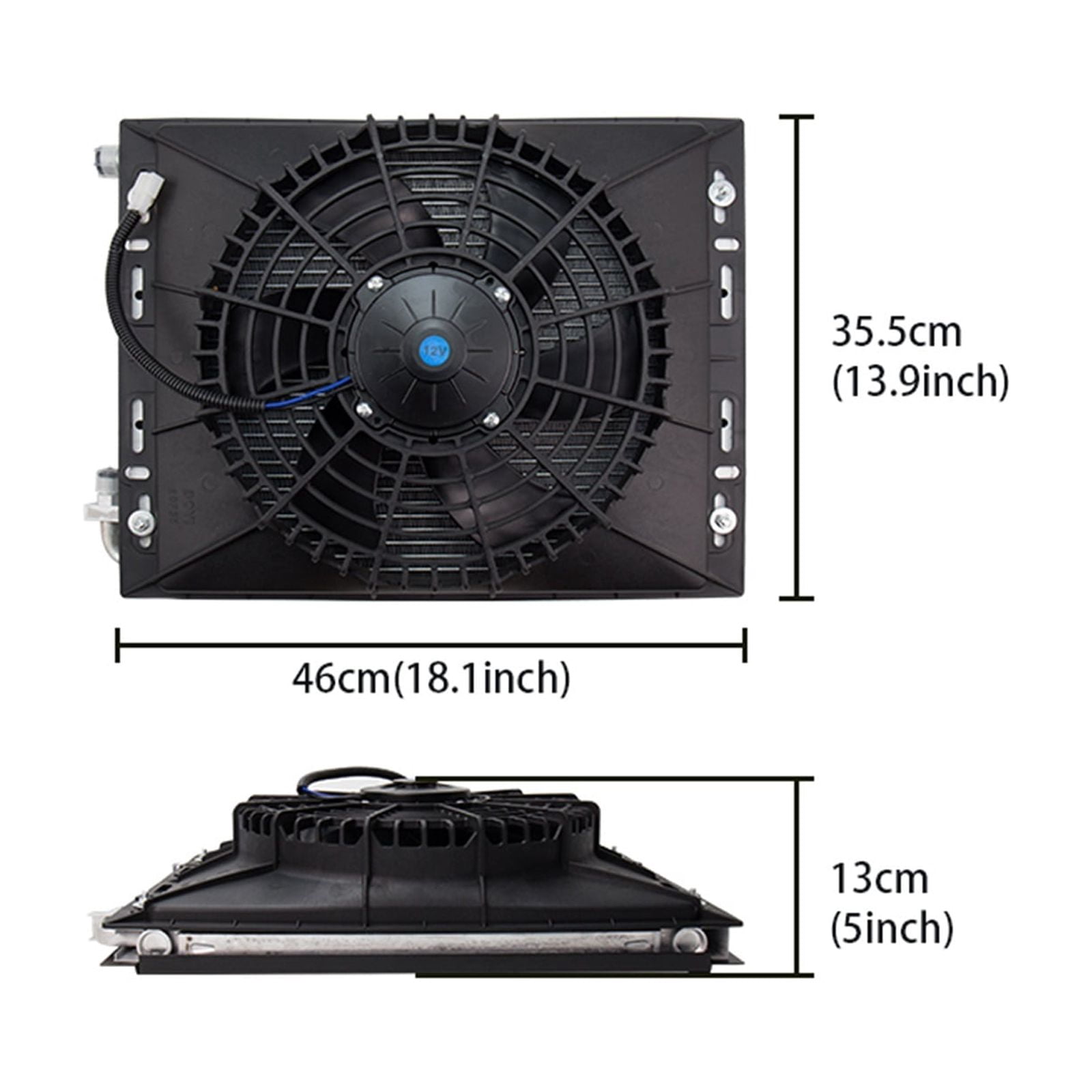

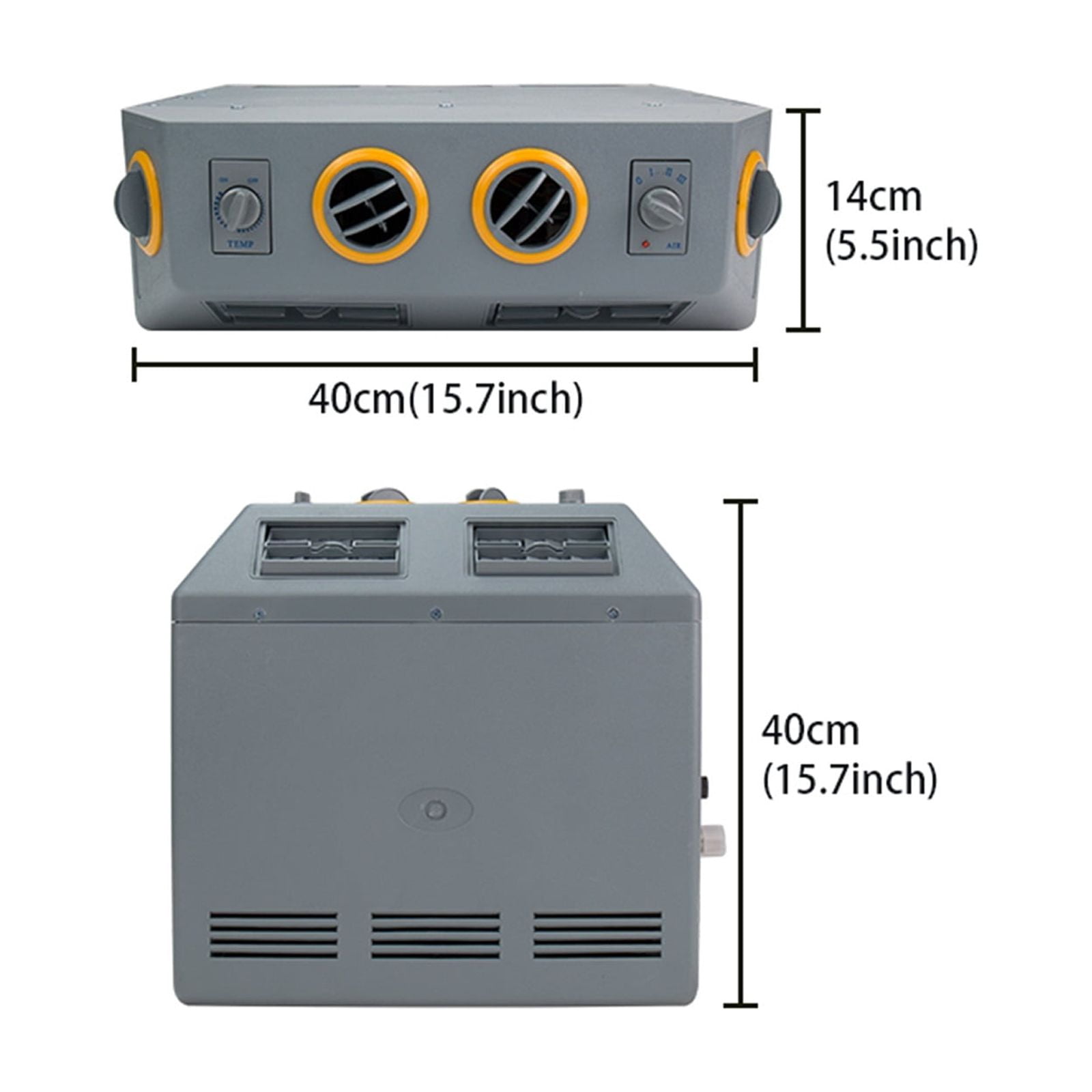

<p>Description:</p><p>This electric air conditioning system (Inside unit + outside unit) can be installed to anywhere you want. It runs by battery(Generator). Even you got your engine stalled, you still can use this air conditioner. Low noise, energy-saving, environmental protection is the best choice for you. </p><p></p><p>Pay attention:</p><p>1. PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn't take responsibility for you if you damage the compressor.</p><p>2. Remember ! Please screw tightly of the controller board. Otherwise the board will get burnt.</p><p>Generator (battery) request:</p><p>12V compressor require generator ampere over 100a;</p><p>24V compressor require generator ampere over 70A.</p><p>About vehicle battery. If you want to use the electric compressor after parking, then your vehicle battery capacity should be large enough. For example, 12V compressor current about 45A. So one new and full charged 45A battery can run the compressor for one hour.</p><p>Compressor data:</p><p>Compressor style: Semi-closed Horizontal Scroll Compressor</p><p>Material: Aluminum alloy</p><p>Voltage: DC 12V / 24V</p><p>Working voltage range: 10.5VDC-15VDC / 19.5VDC-32VDC</p><p>Current: 45A+-2 / 35A+-2</p><p>Displacement: 21cm³/r</p><p>Cooling capacity: 1.688KW / 2.465KW</p><p>(5731BTU / 8410BTU)</p><p>Speed range: 1000 - 2300rpm / 1000 - 3000rpm</p><p>Rated power: 550W / 850w</p><p>Rated speed: 1800rpm / 3000rpm</p><p>Oil: POE / 130ml - 150ml (Oil has already in compressor )</p><p>Gas/Refrigerant: R134a</p><p>Condensing temperature range: 26.7-68</p><p>Evaporating temperature range: -10-12.5</p><p>Refrigerant leakage rate: &lt;14g per year</p><p>Suction pipe inner size: Ø18.3mm</p><p>Discharge pipe inner size: Ø15.5mm</p><p>COP W/W: 3.07 / 2.9</p><p>Led blinking:</p><p>Blinking 1 times, pause 1 second: Standby mode.</p><p>Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.</p><p>Fast blinking 3 times, pause 1 second: Locked rotor protection.</p><p>Fast blinking 4 times, pause 1 second: Undervoltage protection.</p><p>Fast blinking 6 times, pause 1 second: Electric fan fault.</p><p>Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.</p><p>Fast blinking 8 times, pause 1 second: Compressor over heated protection.</p><p>Fast blinking 9 times, pause 1 second: Pressure switch protection.</p><p>Brushless controller unit:</p><p>Brushless direct current controller</p><p>1. Over / Under voltage protection:</p><p>DC 12V -- ( 21V / 10.5V )</p><p>DC 24V -- ( 42V / 20.5V )</p><p>2. Max power: 600W / 1200W</p><p>3. Working temperature: Under 50</p><p>Outside unit:</p><p>Power : 120w</p><p>Outside Unit Dimension (Inch): 18.1 x 9 x 14inch</p><p>Whole unit :</p><p>Cooling capacity: 1680/2500w (5724/8532Btu/h)</p><p>R134a gas (Freon): R134a</p><p>R134a gas (Freon) needed: 600g-1200g</p><p></p><p>Cooling performance:</p><p>Remark: Speed tolerance ±1%. Actual test cooling capacity data not less than 90% of data in the table. Actual test power rate not exceed 110% of data in the table.</p><p>Dimension:</p><p>Compressor body not to be tilted (the angle between the main axis of the compressor and the horizon should not be greater than 5 °)</p><p>Battery / Evaporator / Radiator Fan Negative</p><p>To relay negative, Pin No.85</p><p>To relay Pin No.86</p><p>To battery / relay positive</p><p>To pressure switch</p><p>To compressor temperature sensor</p><p>To evaporator signal</p><p>Evaporator</p><p>Evaporator with three positions air switch and temperature switch.</p><p>1.5 Ton O-ring expansion valve, Size #6 and #10</p><p>Strong PP case</p><p>Electric fan</p><p>120W strong airflow (pulling air) radiator fan</p><p>Radiator protector net for stone attacked.</p><p>Radiator with #6 and #8 male O-ring fittings.</p><p>Electric compressor</p><p>Four thick rubber leg for shockproof</p><p>Four extended cable. From 2 to 12 square millimeter. Safety and qualified</p><p>Dryer/Hose</p><p>Dryer with glass. Size #6 to #6</p><p>Hose with three layer protection. No leaking and strong.</p><p></p><p>Product List</p><p>1 x Evaporator with mounting bracket</p><p>1 x Radiator fan / Radiator/ Radiator protector</p><p>1 x Electric compressor</p><p>2 meters x Electric compressor motor cable / 2 meters x Power cable /</p><p>2 meters x Electric compressor temperature sensor cable / dryer cable /2 meters x Radiator fan cable</p><p>Electric compressor control board</p><p>5 meters x #6 hose</p><p>3 meters x #8 hose</p><p>5 meters x #10 hose</p><p>1 x dryer with clamp</p><p>2 x ralay</p><p>2 x relay socket</p><p>8 x hose clips.</p><p>4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting</p><p>1 x #6 #8 #10 fitting with service port</p><p>4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting</p><p>8 x #6 steel crimp ferrule / 4 x #8 steel crimp ferrule / 4 x #10 steel crimp ferrule</p><p>2 x Electric compressor fittings</p><p>Related Products: </p><p>rv air conditioner, </p><p>rv ac unit, </p><p>rv air conditioners, </p><p>12 volt air conditioner, </p><p>12v rv air conditioner, </p><p>camper air conditioner, </p><p>ducted rv air conditioner, </p><p>12v air conditioner</p>

• RV Air Conditioner · Comfortable Travel
• Speed range: 1000 - 2300rpm / 1000 - 3000rpm
• Rated power: 550W / 850w
• Rated speed: 1800rpm / 3000rpm
• Oil: POE / 130ml - 150ml (Oil has already in compressor )
• Gas/Refrigerant: R134a
