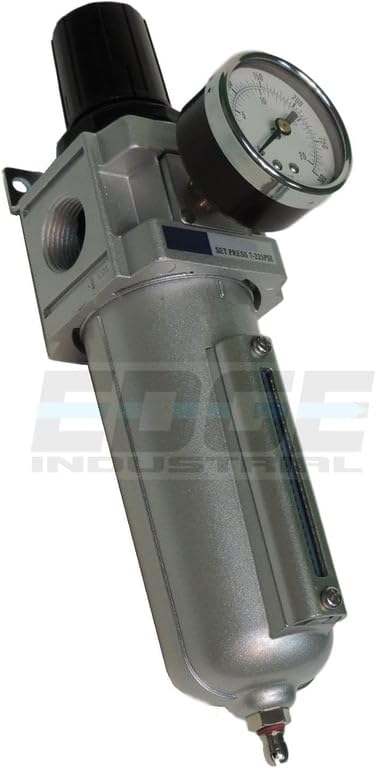

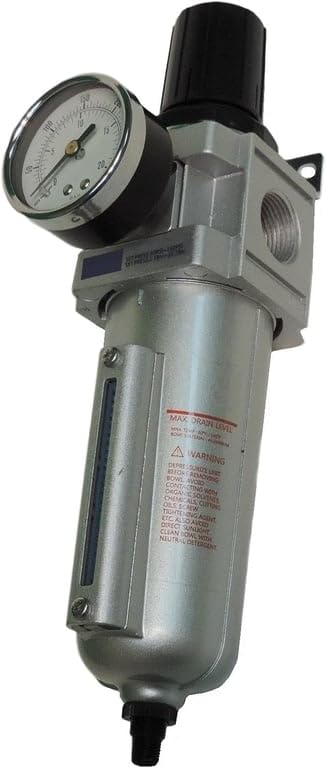

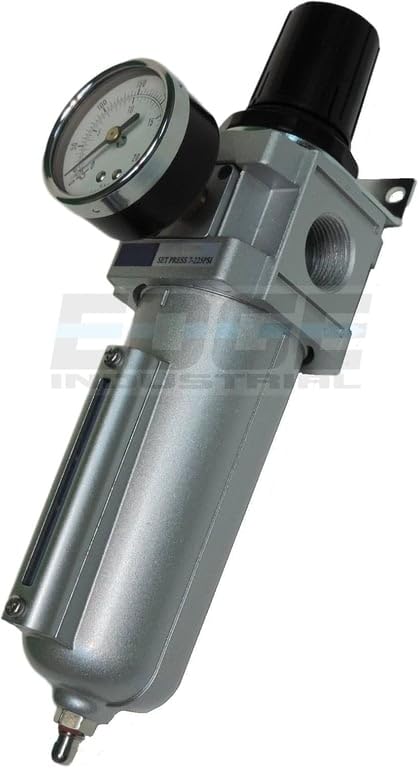

3/4" NPT, THB Industrial Particulate Filter Pressure Regulator Combination, Removes Debris Moisture, Regulates Air Pressure, 5oz Bowl (215 PSI Max), Qty 01

Particulate filters remove harmful oil/water condensate, pipe scale, dirt and rust from you compressed air system. This prevents corrosive damage to compressed air equipment and finished products. Typically, particulate filters are installed upstream of regulators to prevent valve failure. They can also be used as pre-filters to oil removing and coalescing filters to insure high efficiency and long element life in applications such as paint spraying and instrumentation. In-Line Air pressure regulators are used to reduce and maintain pressure at a level suitable for the device downstream. Pneumatic equipment operating at a higher than recommended pressure can cause excess torque, force and wear while simultaneously wasting compressed air. Pneumatic equipment operating below specified pressure can cause machines to fail to meet their design performance specifications. Precise pressure control is essential for efficient operation of air-powered equipment. An air line regulator is a control valve which reduces the upstream air supply pressure level to a specified constant downstream pressure. Installation, operation & maintenance instructions are included with each Arrow unit. Installation and operational instructions are included. Filter elements and Auto drains should be replaced every 6-12 months or as needed.

• 3/4" NPT, THB Industrial Rated Particulate Filter Removes 95% of Water Condenstate, Harmful Oil, Pipe Scale, Dirt And Rust From Compressed Air Lines
• Regulates Air Pressure From 7 PSI to 215 PSI with a Simple to Use Push Pull Twist Knob, Includes Pressure Gauge and Wall Mounting Bracket

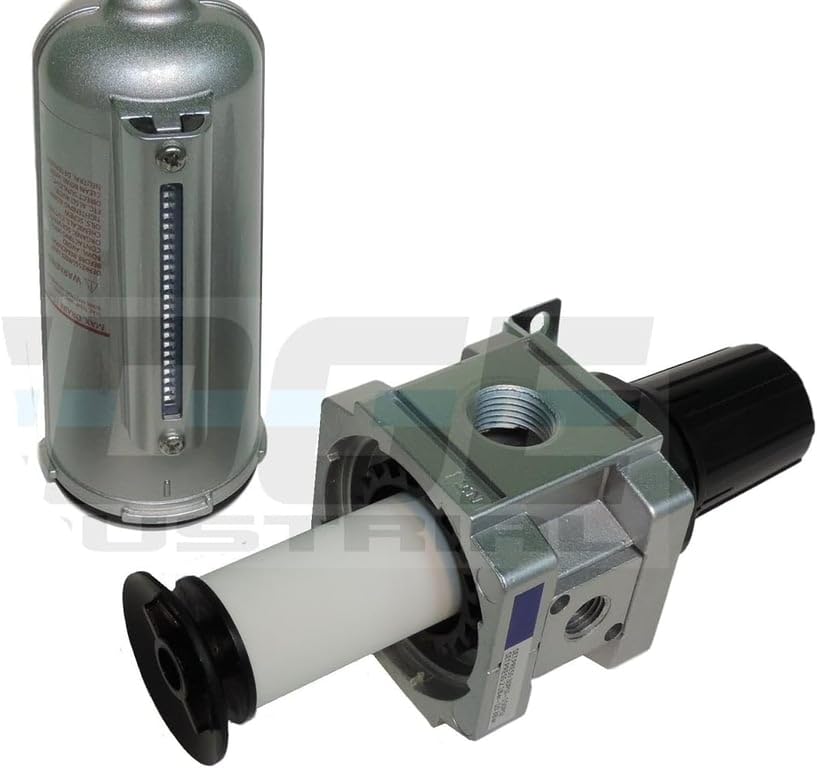

• 5 Ounce Metal Bowl, Visible Sight Glass, Manual Push Drain and 5u Micron Filter Element
• 215 PSI Max Output, 250 PSI Max Input, 130 CFM Flow Rate, 12-1/2" Height, 2-3/4" Width
• Replacement 5u Micron Filter Element Part Number F7607
